DHR Heavy Duty Slurry Pumps

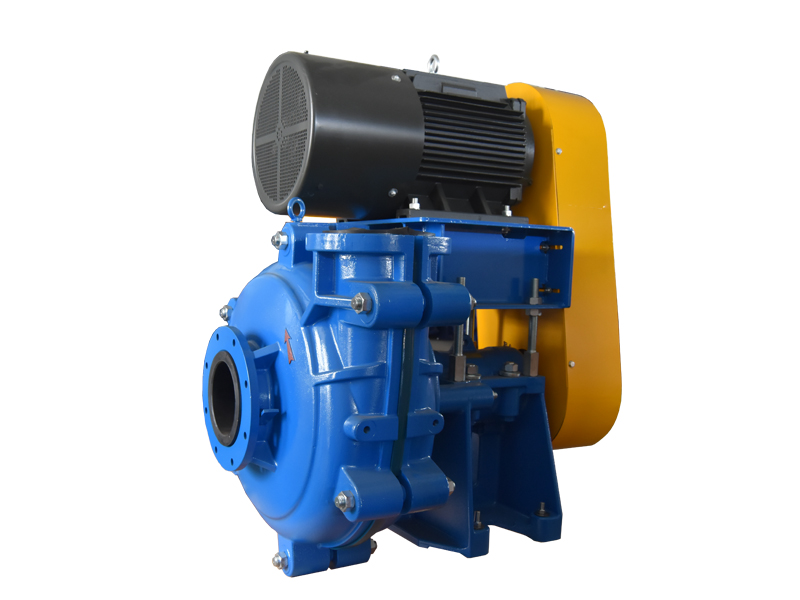

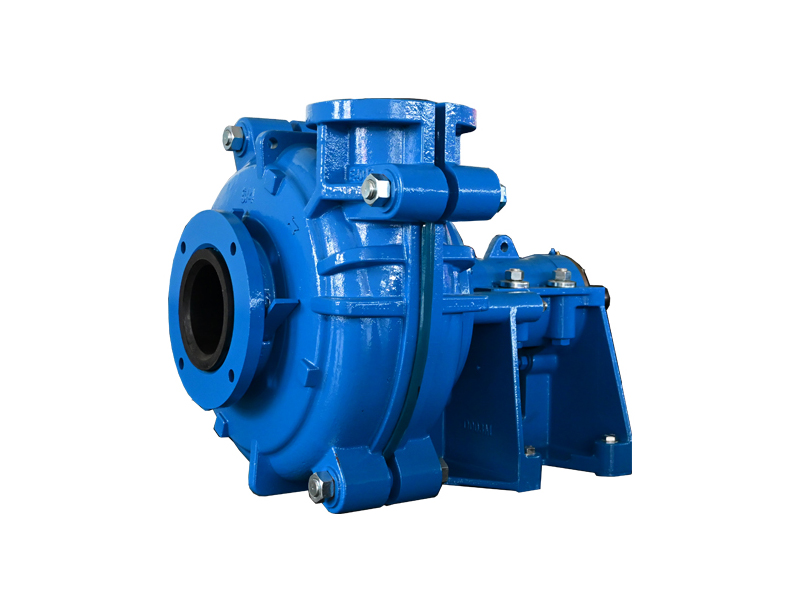

DHR Series Rubber Lined Heavy Duty Slurry Pumps

Type Meaning：DHR/75D

DH: Heavy duty slurry pump

R: Rubber Lined

75: Outlet diameter 75mm

D: Base Type

Materials：Rubber（Exchangeable with High Chromium Alloy and Polyurethane ）

Applications：They are widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering etc.

Send E-mail Request Quote

Description

Specification

Application

Structure type: Type DHR slurry pumps are double shell cantilever horizontal centrifugal pump.

Transport materials: They are designed for conveying strong corrosion and high concentration slag slurry.

Lining materials: Wear resistant metal lining and rubber lining , they can be used interchangeably.

Characteristics:

Type DHR, also called Rubber Lined heavy-duty slurry pump.Because this type of pump has thick wear parts and heavy base,Therefore, it is suitable for conveying strong abrasion, high concentration slag slurry or low concentration high lift slag slurry,Within the maximum allowable working pressure range of the pump, it can be used in series.Among them, type DHR pump is suitable for conveying low concentration high lift slag slurry or high concentration low abrasion high lift slag slurry.The above types of pumps can also be used for slag slurry with certain abrasiveness.

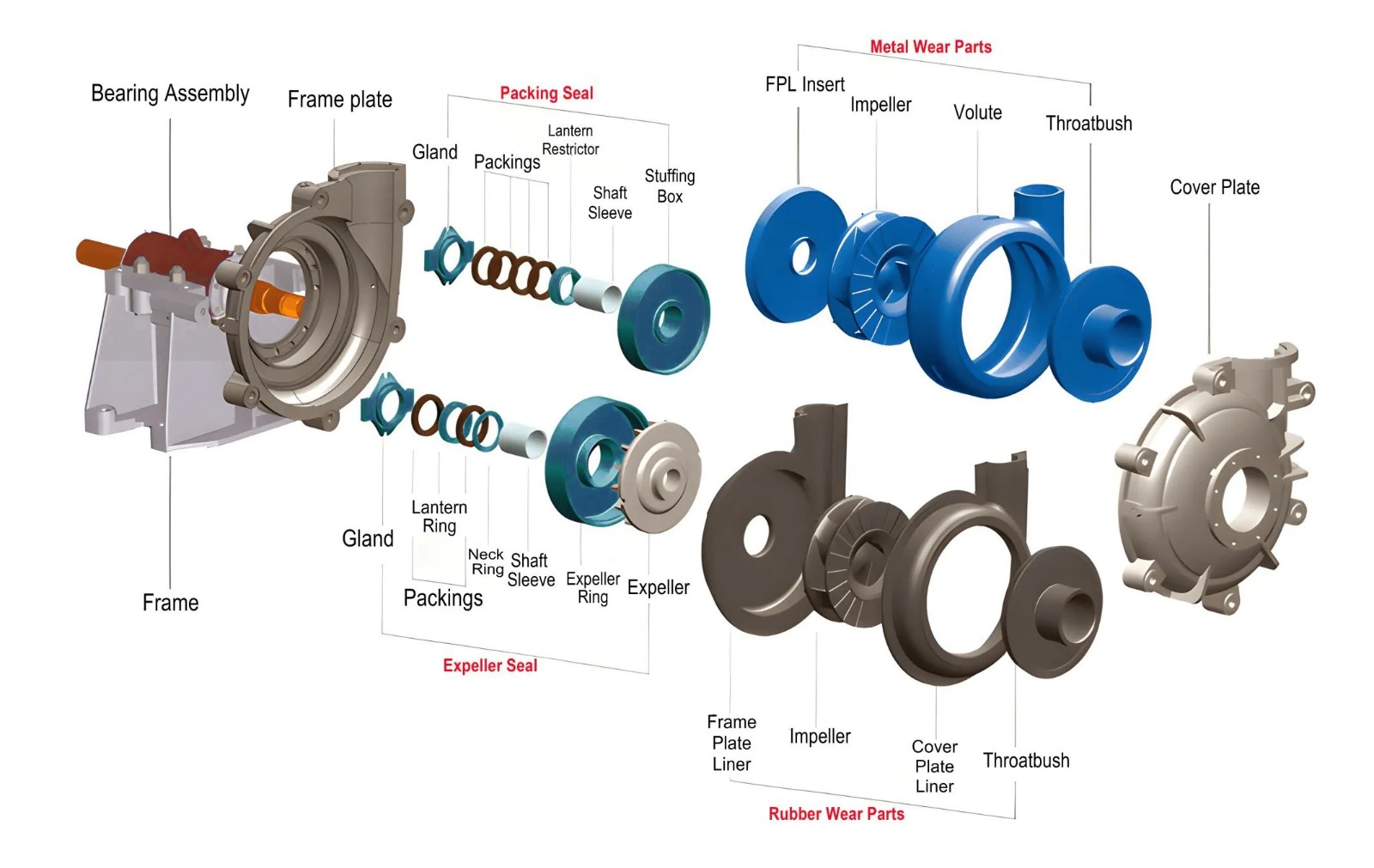

Anatomical Drawing:

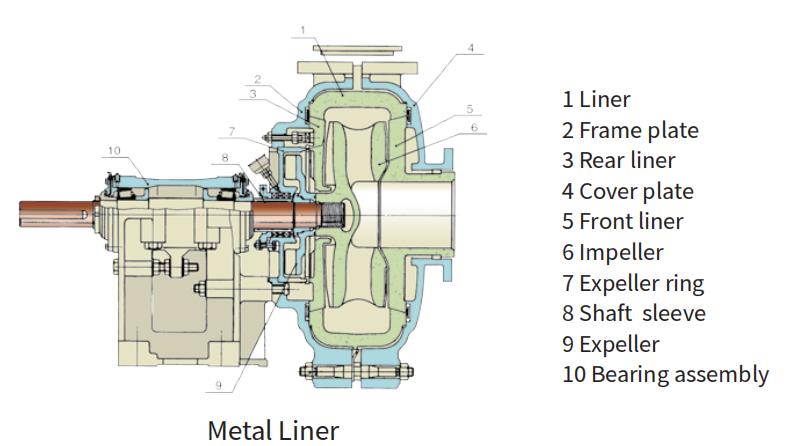

Construction Design:

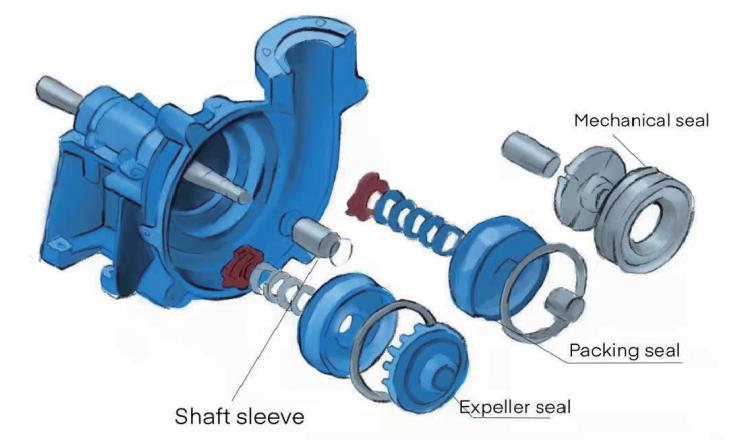

Shaft Seal Module Design

Packing Seal，Expeller Seal，Mechanical Seal

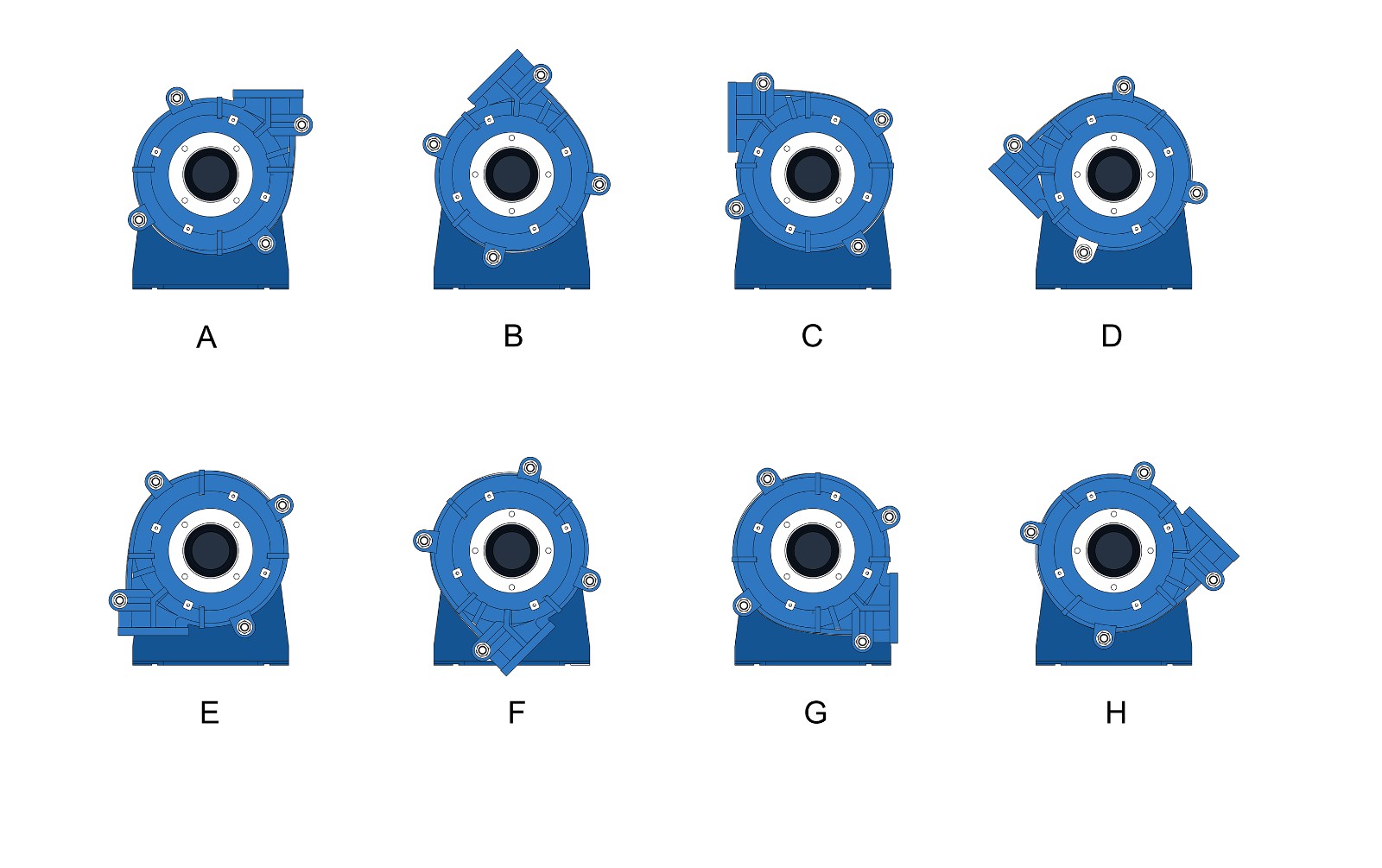

Eight exit directions:

The outlet position of the pump can be spaced at 45 ℃ as required, It can be rotated at eight different angles to install and use. This type of pump can also be used in series.

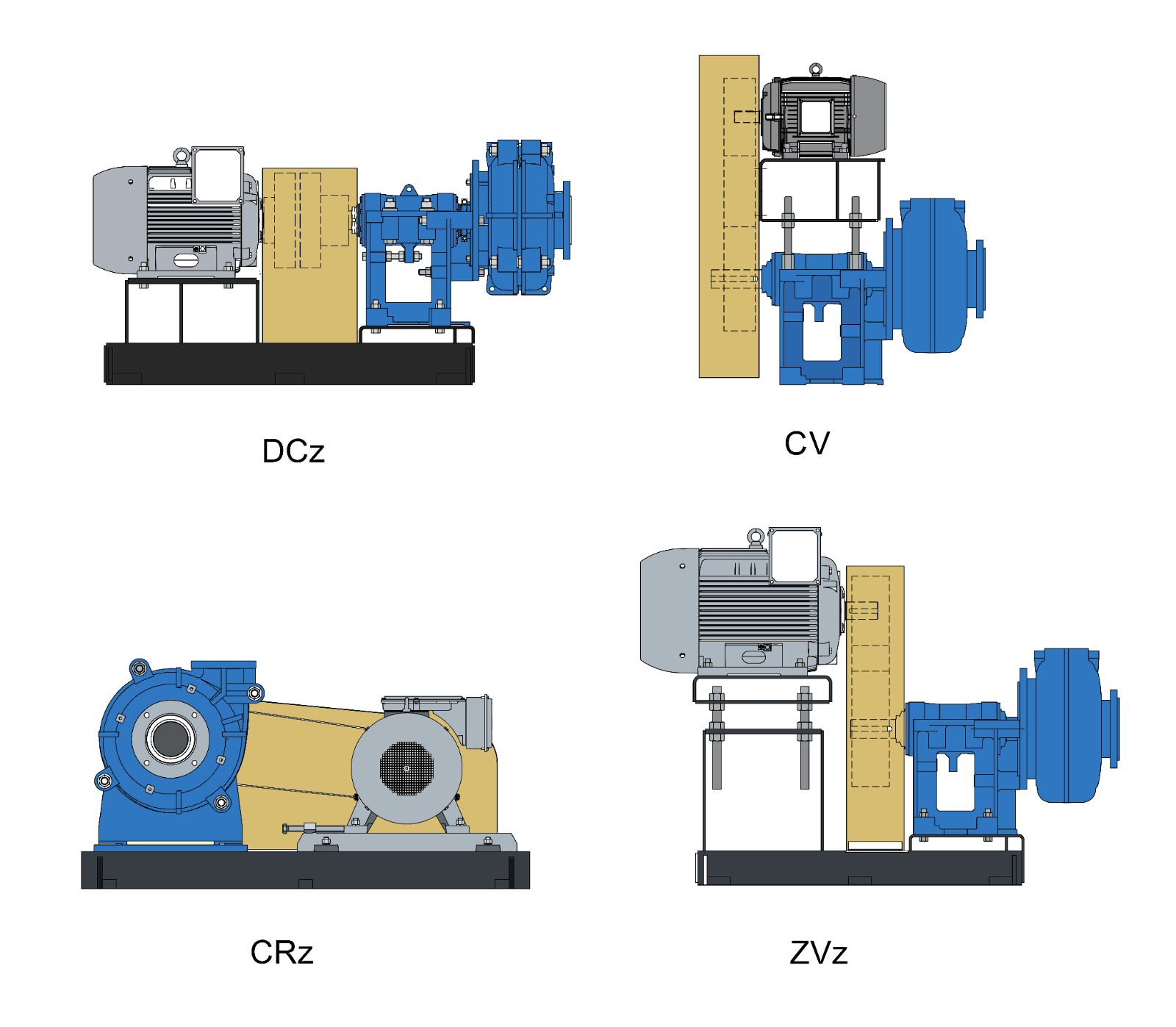

Four Transmission Modes：

Specifications:

Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
DHR/25B	1.5×1	15	Rubber (R55)	10.8-25.2	3-7	7-52	1400-3400	35		3	152
DHR/40B	2×1.5	15		25.2-54	7-15	5.5-41	1000-2600	50	2.5-5	5	178
DHR/50C	3×2	30		36-75.6	10-21	13-39	1300-2100		2-4		213
DHR/75C	4×3	30		79.2-180	22-50	5-34.5	800-1800	59	3-5		245
DHR/75D	4×3	60		79.2-180	22-50	5-34.5	800-1800	59	3-5		245
DHR/100D	6×4	60		144-324	40-90	12-45	800-1350	65	3-5		365
DHR/100E	6×4	120		144-324	40-90	12-45	800-1350	65	3-5		365
DHR/150E	8×6	120		324-720	90-200	7-49	400-1000	65	5-10		510
DHR/150F	8×6	260									510
DHR/150R	8×6	300									510
DHR/200F	10×8	260		540-1188	200-450	7-45	300-650	80	2.5-7.5		686
DHR/200ST	10×8	560		540-1188	200-450	7-45	300-650	80	2.5-7.5		686
DHR/250F	12×10	260		720-1620	320-700	13-14	300-500	79	3-8		762
DHR/250ST	12×10	560		720-1620	320-700	13-14	300-500	79	3-8		762
DHR/300F	14×12	260		1152-2520	380-850	11-63	250-550	79	4-10		965
DHR/300ST	14×12	560		1152-2520	380-850	11-63	250-550	79	4-10		965

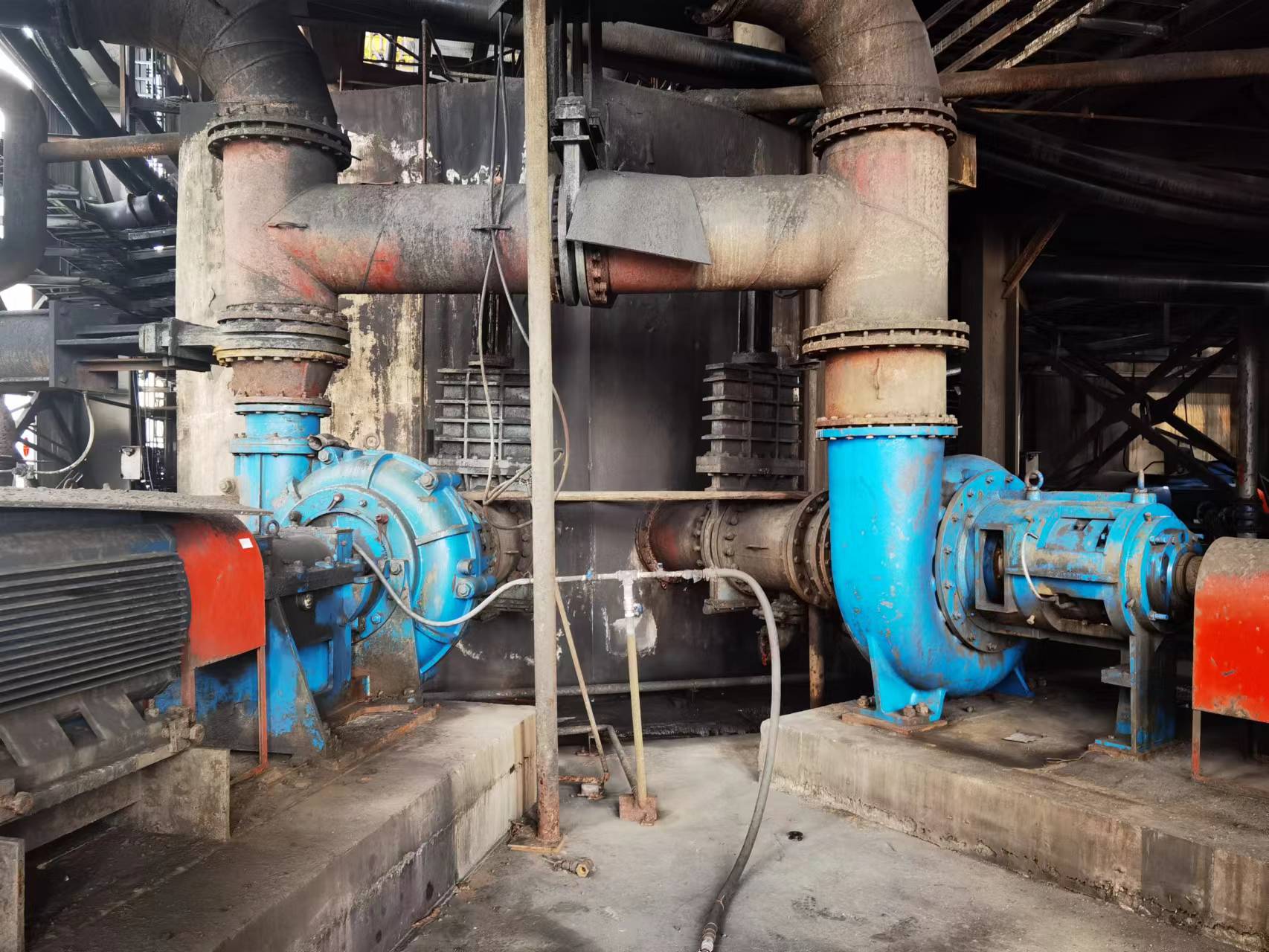

Typical Applications:

Gold flotation

Quartz sand ore processing

Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal


DHR Slurry pumps are designed for the toughest slurry applications
