Slurry Pumps Manufacturers from China

Product Features

Structure type:

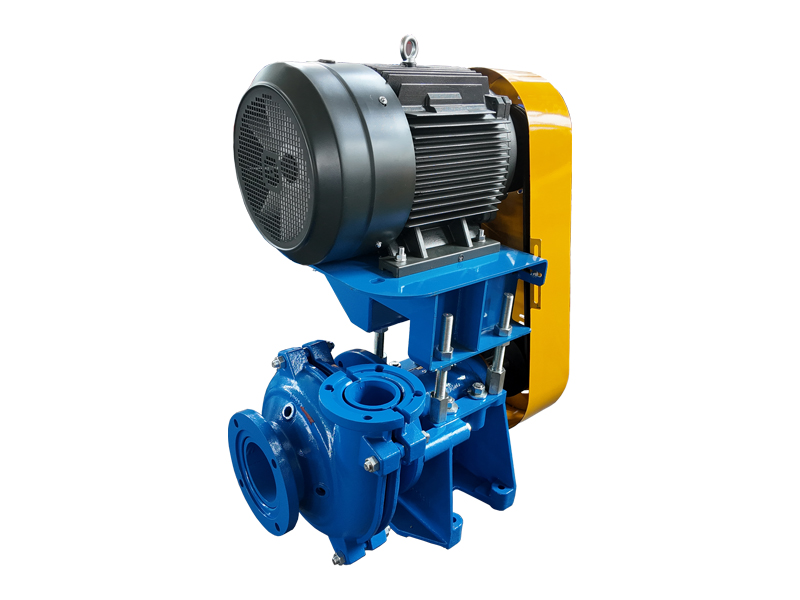

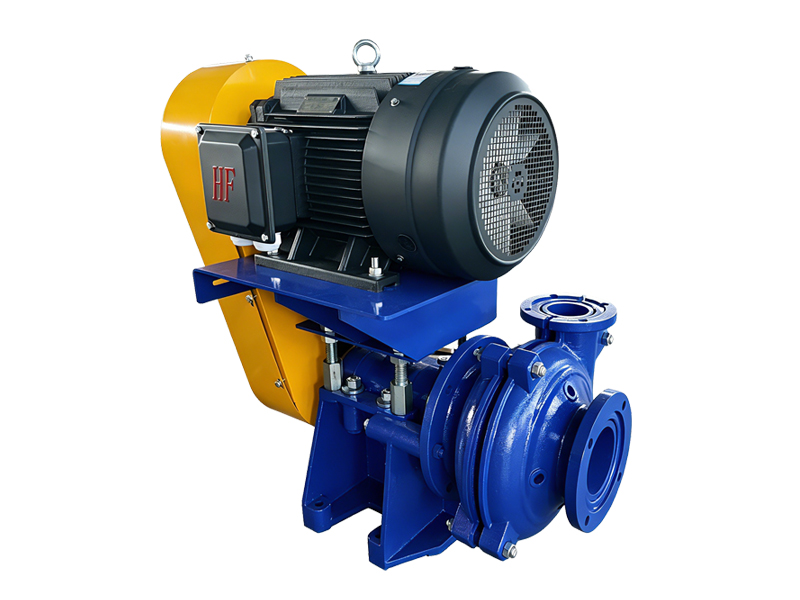

Type DL slurry pumps are double shell cantilever horizontal centrifugal pump.

Transport materials:

They are designed for conveying slag slurry with fine particles, low concentration or low abrasiveness.

Applications：

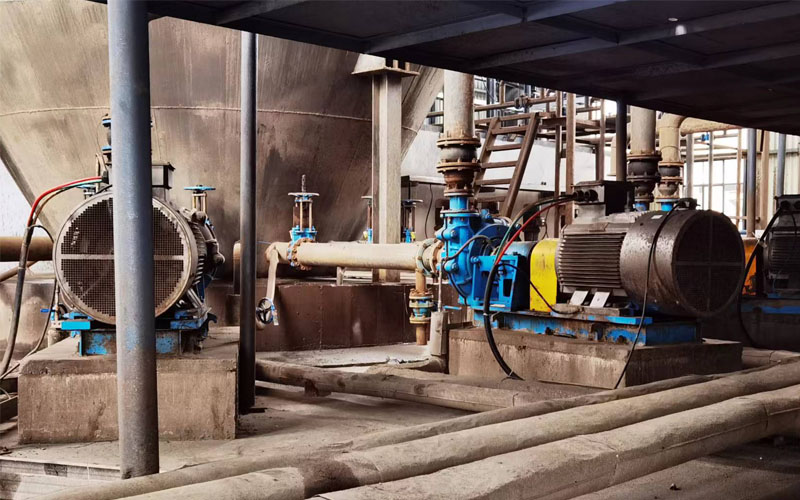

They are widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering etc.

Lining materials:

Wear resistant metal lining and rubber lining , they can be used interchangeably.

Transmission mode:

DCZ direct drive, CRZ parallel belt drive , ZVZ upper and lower belt drive, CV belt drive.

Shaft Seal Mode:

Packing Seal, Expeller Seal,Mechanical Seal,etc.

Installation and usage:

The outlet position of the pump can be spaced at 45 ℃ as required, It can be rotated at eight different angles to install and use. This type of pump can also be used in series.

Classification and characteristics:

Type DL, also called light-duty slurry pump. Compared with heavy-duty slurry pump, this type of pump has small volume and light weight. It is suitable for conveying slag slurry with fine particles, low concentration or low abrasiveness

General Introduction:

 ▶The DL series pumps are in a wide range of sizes, available with both high chrome and ruber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomer to suit the specific application.
 ▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal and mechanical seal.
 ▶Our metal lined DL series slurry pumps are designed for heavy duty industrial applications, to handle the most arduous slurries.
 ▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.
 ▶The DL series provides the widest range of hydraulics from the 20mm to a 550mm discharge pumps. The 20mm pump is perfect for the laboratory or in demonstration plants.

▶Type DL, also called light-duty slurry pump. Compared with heavy-duty slurry pump, this type of pump has small volume and light weight. It is suitable for conveying slag slurry with fine particles, low concentration or low abrasiveness.

DL Slurry pumps are designed for the toughest slurry applications
